產品型號：A型
產品代碼：0000023
產品價格：1
產品編碼：000023002
計量單位：套
折 扣 率： 0
最后更新：2016-03-03
關 注 度：6047
生產企業：承德市萬吉儀器儀表制造有限公司
|
|
|
 與企業聯系時請告知該信息來自教育裝備網！ |
|
|

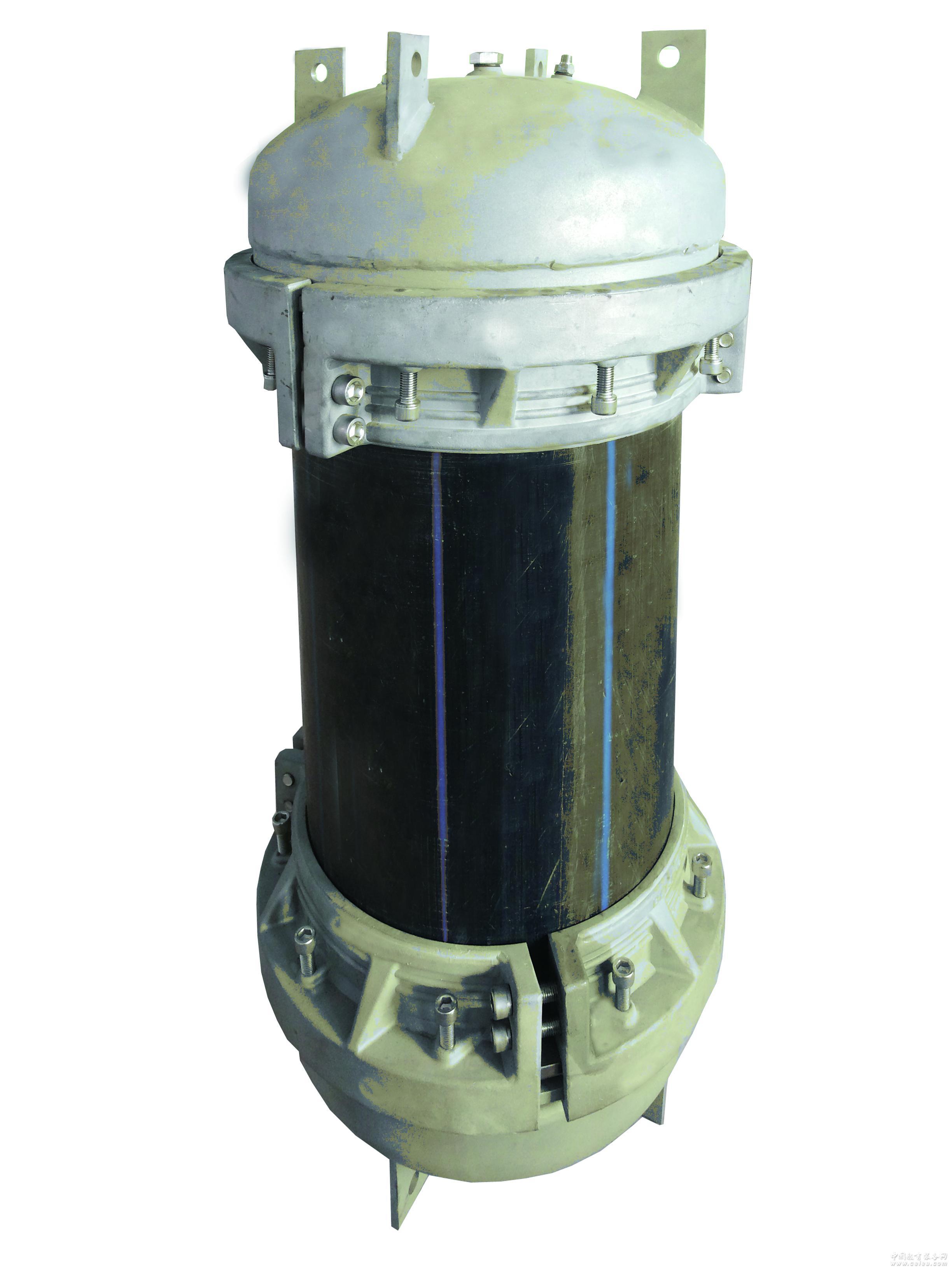

產品詳細介紹管材夾具 型夾具 耐壓夾具 耐壓封頭 管材靜液壓夾具 管材爆破封頭 碳鋼夾具 不銹鋼夾具 塑料管材封頭
管材夾具部分為國標GB/T6111中的（A）型夾具
不銹鋼304材質夾具
操作簡單 管材耐壓封頭 管材靜液壓夾具
管材靜液壓爆破試驗機夾具規格
Φ16、Φ20、Φ25、Φ32、Φ40、Φ50、Φ63、Φ75、Φ90、Φ110、
Φ125、Φ140、Φ160、Φ180、Φ200、Φ225、Φ250、Φ315、Φ350
Φ400、Φ450、Φ500、Φ560、Φ630、等
功能、適用范圍：
靜液壓試驗機適用于各種塑料管材長期靜液壓試驗、管材液壓瞬時爆破試驗和長期恒定耐壓下熱塑性管材耐破壞時間的測定。是各科研院所、質檢部門及管材生產廠家必備的檢測設備。
執行標準：
GB/T6111—2003 《流體輸送用熱塑性塑料管材耐內壓試驗方法》
GB/T15560—1995 《流體輸送用塑料管材液壓瞬時爆破耐壓試驗方法》
GB/T18742.1—2002《冷熱水用聚丙烯 第二部分：管材》
GB/T18742.2—2002《冷熱水用聚丙烯 第二部分：管材》
GB/T18742.3—2002《冷熱水用聚丙烯 第三部分：管件》
GB/T13663—2000 《給水用聚乙烯PE管材》
GB/T15558.1—2003《燃氣埋地用聚乙烯PE管材》
GB/T18992.1—2003《冷熱水用交聯聚乙烯管道系統總則》
GB/T18992.2—2003《冷熱水用交聯聚乙烯管道系統管材》
GB/T10002.1—1996《給水用硬聚氯乙烯（PVC—U）管材》
GB/T10002.2—1996《給水用硬聚氯乙烯（PVC—U）管件》
GB/T18993.1—2003《冷熱水用氯化聚氯乙烯管道系統》
GB/T18993.2—2003《冷熱水用氯化聚氯乙烯管道系統》
GB/T18992.1—2003《冷熱水用氯化聚氯乙烯管道系統管件》
GB/T18997.1—2003《鋁塑復合壓力管鋁管搭接焊式鋁塑管》
GB/T18997.2—2003《鋁塑復合壓力管鋁管對接焊式鋁塑管》
ASTM D1598、ASTM D1599
Pipe clamp
304 stainless steel material clamp tubing pressure testing machine tubing pressure seal joint pipeline pressure test clamp pipes hydrostatic testing machine static hydraulic test fixture
The operation is simple Tubing pipes hydrostatic pressure head clamp high-temperature resistant to low temperature fixture sealing effect is good
Pipe hydrostatic tester jig specification
304 stainless steel material fixture
The operation is simple Tubing pipes hydrostatic pressure head clamp high-temperature resistant to low temperature fixture sealing effect is good
Pipe hydrostatic tester jig specification
Φ 16, 20, 25, 32 Φ Φ Φ, 40, 50, Φ Φ Φ 63, 75, 90, Φ 110 Φ Φ,
Φ 125, Φ 140, 160, 180, 200, Φ Φ Φ Φ 225, 250, 315, Φ Φ Φ 250
400, 450, 500, Φ Φ Φ Φ 560, Φ 630, etc
Function, scope of application:
Hydrostatic testing machine is suitable for all kinds of plastic pipes long-term hydrostatic test, instantaneous blasting pipe hydraulic test and long-term thermoplastic pipe under constant pressure resistance to damage the determination of the time.Is the scientific research institutes, quality inspection departments and tubing manufacturers necessary testing equipment.
Execution standard:
GB/T6111-2003 with thermoplastic fluid conveying pipe resistance to internal pressure test method"
GB/T15560-1995 fluid conveying instantaneous blasting with plastic tubing hydraulic pressure test method"
GB/T18742.1-2002 "hot and cold water use polypropylene in the second part: pipe"
GB/T18742.2-2002 "hot and cold water use polypropylene in the second part: pipe"
GB/T18742.3-2002 "the third part: hot and cold water use polypropylene pipe fittings"
GB/T13663-2000 "water supply with polyethylene PE pipe"
GB/T15558.1-2003 "gas buried with polyethylene PE pipe"
GB/T18992.1-2003 "hot and cold water with cross-linked polyethylene pipe system general rules"
GB/T18992.2-2003 "hot and cold water pipe using crosslinked polyethylene pipe system"
GB/T10002.1-1996 "water supply with rigid polyvinyl chloride (PVC - U) pipe,
GB/T10002.2-1996 "water supply with rigid polyvinyl chloride (PVC - U) pipe fittings"
GB/T18993.1-2003 "hot and cold water with chlorinated polyvinyl chloride (PVC) piping systems"
GB/T18993.2-2003 "hot and cold water with chlorinated polyvinyl chloride (PVC) piping systems"
GB/T18992.1-2003 "hot and cold water with chlorinated polyvinyl chloride (PVC) piping system fitting"
GB/T18997.1-2003 "lu: su composite pressure pipe of lap welding aluminum tube aluminous model"
GB/T18997.2-2003 "lu: su composite pressure tube aluminum pipe butt welding type lu: su"
ASTM D1598, ASTM D1599
Pipe clamp type pressure clamp pipes hydrostatic pressure head tube blasting head Carbon steel clamp stainless steel plastic tubing head
Pipe clamp part of GB/T6111 clamp tubing pressure seal type (A) in the pipe pressure test sealing clamp pressure clamp pressure head price |
|
