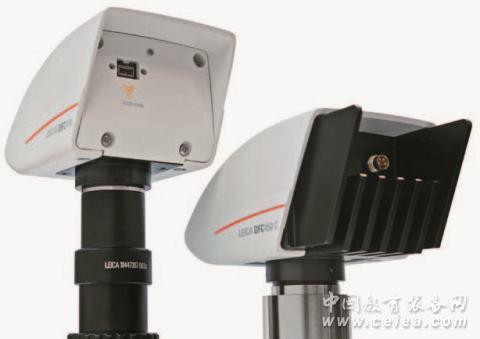

徠卡 leica DFC450 500萬像素數碼相機
|
 |
產品型號：DFC450C，DFC450
產品代碼：
產品價格：
折 扣 率： 0
最后更新：2018-04-20
關 注 度：6019
生產企業：大悅維佳（北京）科技有限公司
|
|
|
 與企業聯系時請告知該信息來自教育裝備網！ |
|
|
產品詳細介紹德國萊卡DFC450、DFC450C（冷卻功能）數碼攝像頭、CCD相機
主要特點：500萬有效像素、2/3" sony ICX282 CCD 、像元尺寸3.4 μm x 3.4 μm 、36bit 彩色深度
Leica DFC450 、DFC450C highlights：
• Fast (18fps) and large (1280×960 pixel) live image for fast focusing and positioning of the specimen.
• High quality 5-megapixel CCD for brilliant captured images.
• Wide range of exposure times to match all types of illuminations and contrast techniques.
• Freely defined region of interest for fastest live image update and precise focus position (ZoomFocus).
• Standard hardware interface for easy and quick connection to all microscopes (c-mount, FireWire-B).
• Powerful software and intuitive user interface for convenient image capture and processing functions.
• Complete camera kit with camera head, Firewire cables and Firewire PCexpress board for easy installation to PC.
DFC450 /DFC450C Technical Data：
Digital camera Leica DFC450 / DFC450 C
Camera type Digital camera for microscopy with control software
Sensor interline transfer frame readout CCD – ICX282
Sensor size 8.7×6.5 mm, diagonal 11 mm (type 2/3”)
Color filter RGB Bayer Mosaic
Shutter control Electronic global shutter / 2 frames interlaced readout
Protective filter Removable dust protection, UV/IR filter
Number of pixels 5.0 megapixel, 2560×1920
Pixel size 3.4 μm x 3.4 μm
Color depth 36Bit
A/D converter 12Bit
Dynamic range > 59 dB / > 900:1 dB
Exposure Time Leica DFC450: 1 m sec – 60 sec
Leica DFC 450C: 1 msec – 600 sec
Cooling Leica DFC450: not available
Leica DFC450C: Δ –20° compared to ambient
Region of interest Freely adjustable in 2 pixels steps from 2 × 2 up to full resolution
Image formats Leica DFC450:2560×1920 9fps, 1280*960 18fps, 640*480 30fps
Leica DFC450C: 2560×1920 4.5fps, 1280*960 8.2fps, 640*480 15fps
Recommended video adapter 0.63X or 0.7X
Data Single cable FireWire – IEEE1394B 9-pin
Power supply via FireWire cable
|
|
